Product description
1 Configurable Outputs
2 Ethernet Live Stream
3 USB Live Stream

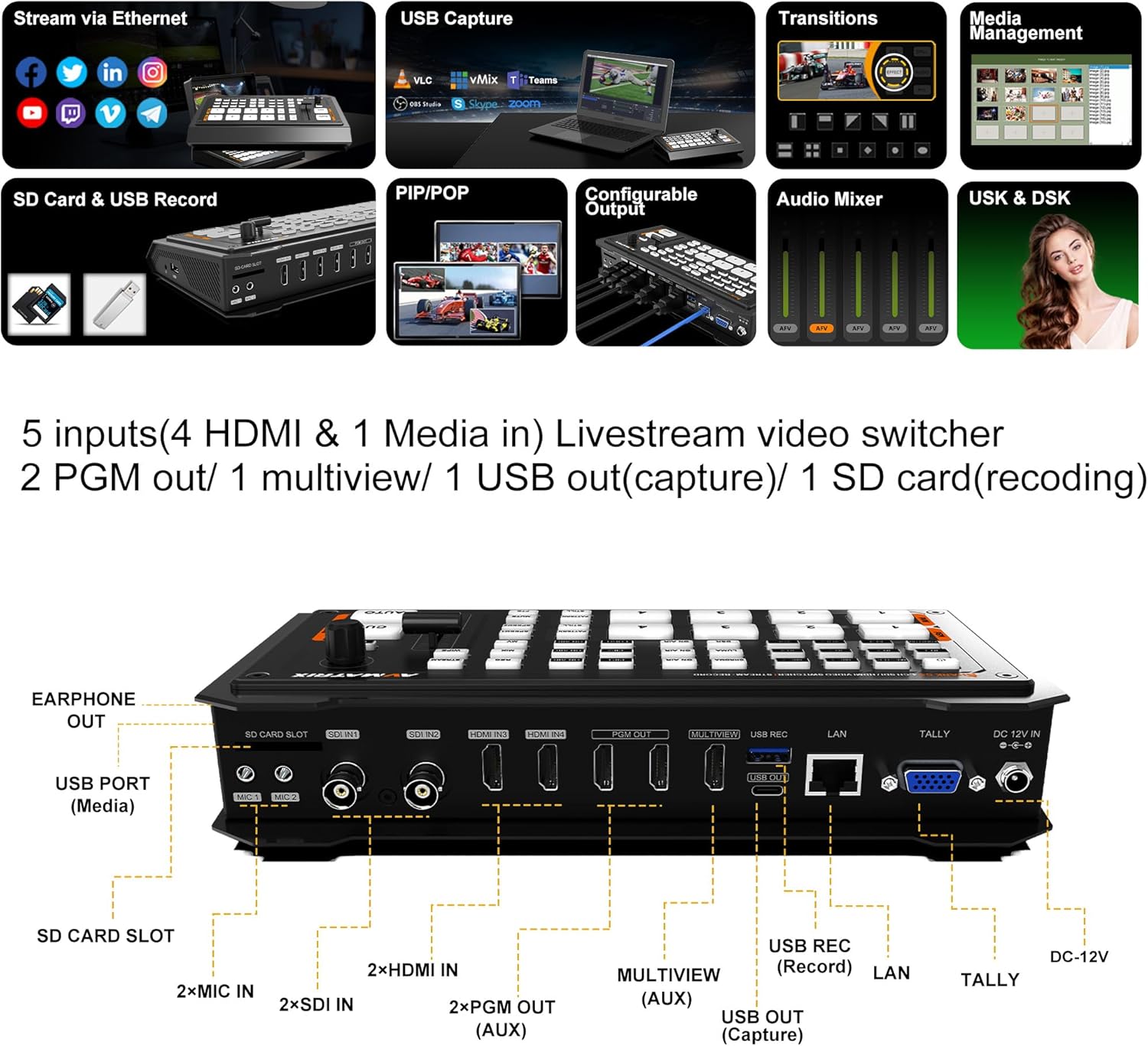

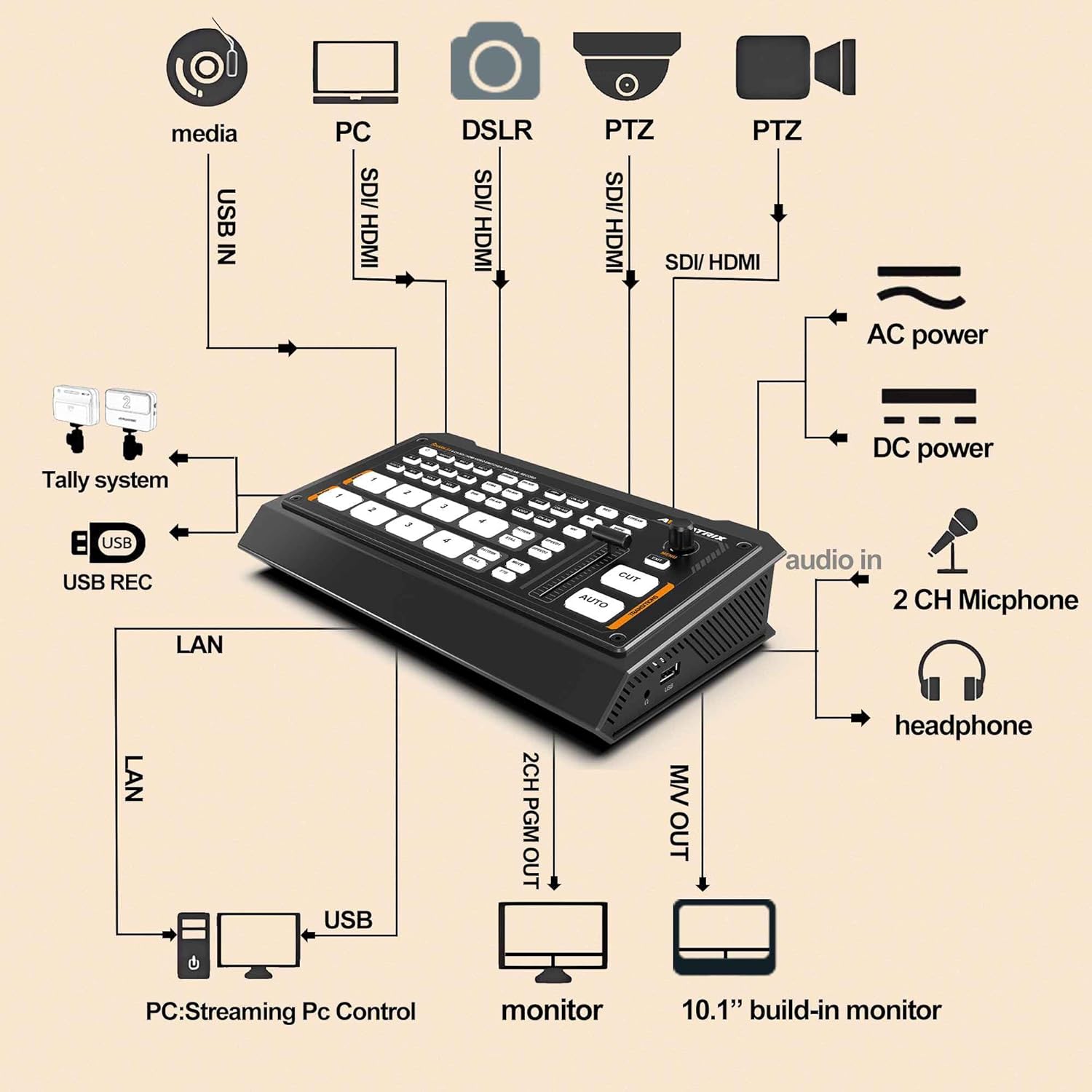

【Rich Interface】This Video Switch integrated 2CH HDMI and 2CH 3G-SDI inputs, 2×HDMI PGM outputs, 1×HDMI multiview output, 1x USB Type-C output and 1x LAN output(only for livestream). All outputs also can be defined assignable to IN1/ IN2/ IN3/ IN4 /PVW/ PGM/ clean PGM/ color bar and Multiview out.
【RTMP/ SRT/ USB livestream】AVMATRIX video switcher Shark S4 integrated 2 stream ports. The LAN port supports lP streaming transmission through the RTMP(S) & SRT protocol. The USB type-C port can capture video & audio and stream to various softwares & platforms such as OBS,vMIX,ZOOM,Teams, Skype and VLC. lt is compatible with Windows, Linux, and Mac.
【USB Disk & SD Card Record】support 2 method to recode, SD card and USB-A interface enable direct recording of PGM signal, making it easy to record high-quality videos. Bitrate of encode up to 32Mbps, and the supported file formats are MP4/TS.
【Up to 6 layers of effects】 Chroma Key, luma Key, Logo, DSK Support add post-production in real time,Up to six layers of effects can be stacked. WIPE, DIP, MIX transition effects can help to make live streaming more interesting and fantastic. It is also a ideal live streaming equipment for church.
【Up to 6 audio mix and audio monitor】 2 HDMI/ 2 SDI enbedded audio and 2-CH MIC/ Line in, audio delay available. This video switcher equips an earphone output, for monitoring each audio.
【PC remote control】all settings of the switcher can be controlled remotely by PC-based control software. Making livestream easier and faster.
【Other Professional feartures】T-bar/ Auto/ Cut transitions; various effects: WIPE(9×2 patterns) / MIX/ DIP ◆Audio mixer: HDMI embedded audio and 2-Ch MIC/ line In; audio delay available ◆Media library: 49 default patterns, 16 imported images, 16 captured images, 2 color generators ◆LAN port for PC software remote control ◆FTB/ MUTE/ STILL/ GPIO for tally ◆customer configuration import and export
