RGBlink mini-mx SDI Multi-Camera Video Switcher for Live Streaming, 10-Channel Broadcast Switcher with 4 4K HDMI, 4 SDI, UVC/NDI, 5.5″ Touchscreen, 2 XLR Audio Mixer, Streaming via OBS,YouTube, RTMP

Price: $1,499.00
(as of Dec 27, 2025 23:39:01 UTC – Details)

Product description

mini-mx SDI 10Channel all-in-one Video Mixer Switcher

professional 4* 3G SDI

MIC/XLR interface

Multi-Layer Presentation

Church/Sport/Event…

1 Broadcast SDI input

2 Pro Level Audio

3 Pro Level Video

4 Live stream anywhere

Intuitive present/stream

full color matrix

Stream in H.265

record and play

1 Transition like a Pro

2 One-click Chroma Key

3 Pro Stream via TAO cloud

4 Livestreaming&Recording

5 Interface

1 mini-mx SDI packing list

2 multi-scenario

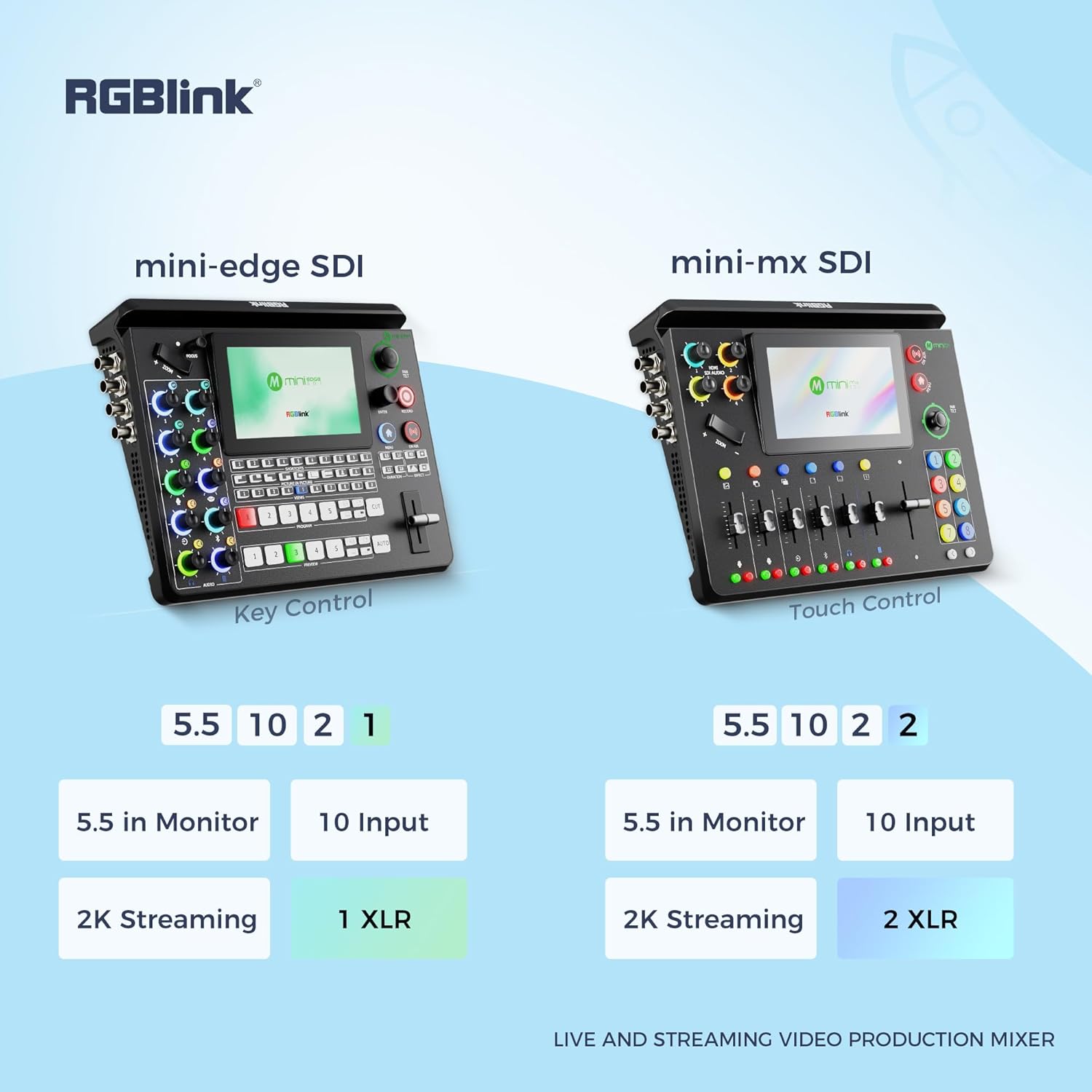

3 miniedge SDI v minimx SDI

4 How to set PTZ Control

5 mini-mx SDI upgrade

Input 4*HDMI-A | 4* 3G SDI | 1*NDI Output 2*HDMI-A | 1*USB-C(Record) | 1*USB-C (Record) Audio MIC IN 1-1*6.35mm XLR+TS Jack( 48V phantom power) | MIC IN 2- 1*6.35mm XLR+TS Jack | LINE IN -1*6.35 mm TRS Jack | Out-1*6.35mm TRS Jack & 1*6.35mm mini-Jack Communication LAN- 1*RJ45 Input Resolution HDMI-1280 × 720@50/59.94/60 | 1024 × 768@60 | 1280 × 768@60 | 1280 × 800@60 | 1280 × 1024@60 | 1360 × 768@60 |1366 × 768@60 | 1440 × 900@60 | 1600 × 1200@60 | 1680 × 1050@60 | 1920 × 1200@60 | 1920 × 1080i@50/59.94/60 | 1920 × 1080p@24/25/29.97/30/50/59.94/60 | 3840 × 2160p@30/50/60 | 4096×2160@30/50/60 Output Resolution HDMI/USB (Webcam)-1280 × 720@50/60 | 1920 × 1080@24/25/30/50/60 Video Video Formats-HDMI 2.0 | HDCP 2.2; Color Space-RGB 8bit; Sampling-4:4:4 YUV; Video Latency <4 frames Audio Format-HDMI:Linear PCM, 24 bits/48 kHz, 2 ch; USB-Linear PCM, 16 bits/48 kHz, 2 ch; Line in delay up to 8 frames Record/Storage Record Format:MP4 ; Disk Formats:FAT32(≤32 GB) | exFAT(64GB~2T) Supported Standards HDMI 2.0; USB 3.0 ; H.265 ITU-T H.265/ ISO/IEC 23008-2 Power Compatability-USB Power Delivery (PD) 3.0 ;Supported Cables-Certified USB PD Aware;Input Voltage-USB-C 12V/3.3A; Maximum Power-40W

RGBlink mini family video mixer switcher for live streaming

Add to Cart

Add to Cart

Add to Cart

Add to Cart

Add to Cart

Add to Cart

Customer Reviews

3.9 out of 5 stars 109

4.2 out of 5 stars 203

4.2 out of 5 stars 203

3.9 out of 5 stars 109

4.2 out of 5 stars 203

4.2 out of 5 stars 203

3.9 out of 5 stars 109

Price

$1,499.00$1,499.00

$999.00$999.00

$598.99$598.99

$295.00$295.00

$169.00$169.00

$719.00$719.00

—

4 * HDMI Inputs

4*4K

4*4K

4*4K

4*4K

4*2K

4*4K

4*4K

4 *3G SDI Input

✔

✔

✔

✘

✘

✘

✘

1* UVC Inputs

✔

✔

✔

✘

✘

✔

✔

1* NDI|HX2 Inputs

✔

✔

✔

✘

✘

✘

✘

Line In/Mic In/UAC In

1/2/1

1/1/1

1/1/1

1/1/-

1/1/-

1/1/1

1/2/1

1*Bluetooth Audio In

✔

✔

✘

✘

✘

✘

✔

HDMI Outputs

2*2K

2*2K

2*2K

2*2K

1*2K

2*2K

2*2K

Touch Screen

✔

✘

✔

✔

✘

✘

✔

PTZ Camera Controls

✔

✔

✔

✔

✘

✔

✔

Video Layers

2

2

2

2

2

2

2

2*Overlay/Logo , Backgroud

✔

✔

✘

✘

✘

✔

✔

UVC/Webcam, RTMP(S )streaming

UVC/Webcam, RTMP(S )streaming

UVC/Webcam, RTMP(S )streaming

UVC/Webcam, RTMP(S )streaming

UVC/Webcam, RTMP(S )streaming

UVC/Webcam streaming

UVC/Webcam, RTMP(S )streaming

UVC/Webcam, RTMP(S )streaming

5.5″ Touch Screen for Real-Time Control & Monitoring ：The responsive 5.5″ TFT touch screen gives real-time multiview of all inputs, plus quick access to switching, transitions, effects, and audio settings. A powerful yet compact live stream switcher ideal for high-end broadcast studio and fast-paced live production workflows. Use one-touch switching between up to 16 pre-saved scenes—ideal for fast-paced live productions. Whether you’re producing solo or with a team, mini-MX SDI with touchscreen puts full control at your fingertips. (（Note:pls UPDATE to the latest firmware before use via LAN or USB drive. See user manual.)

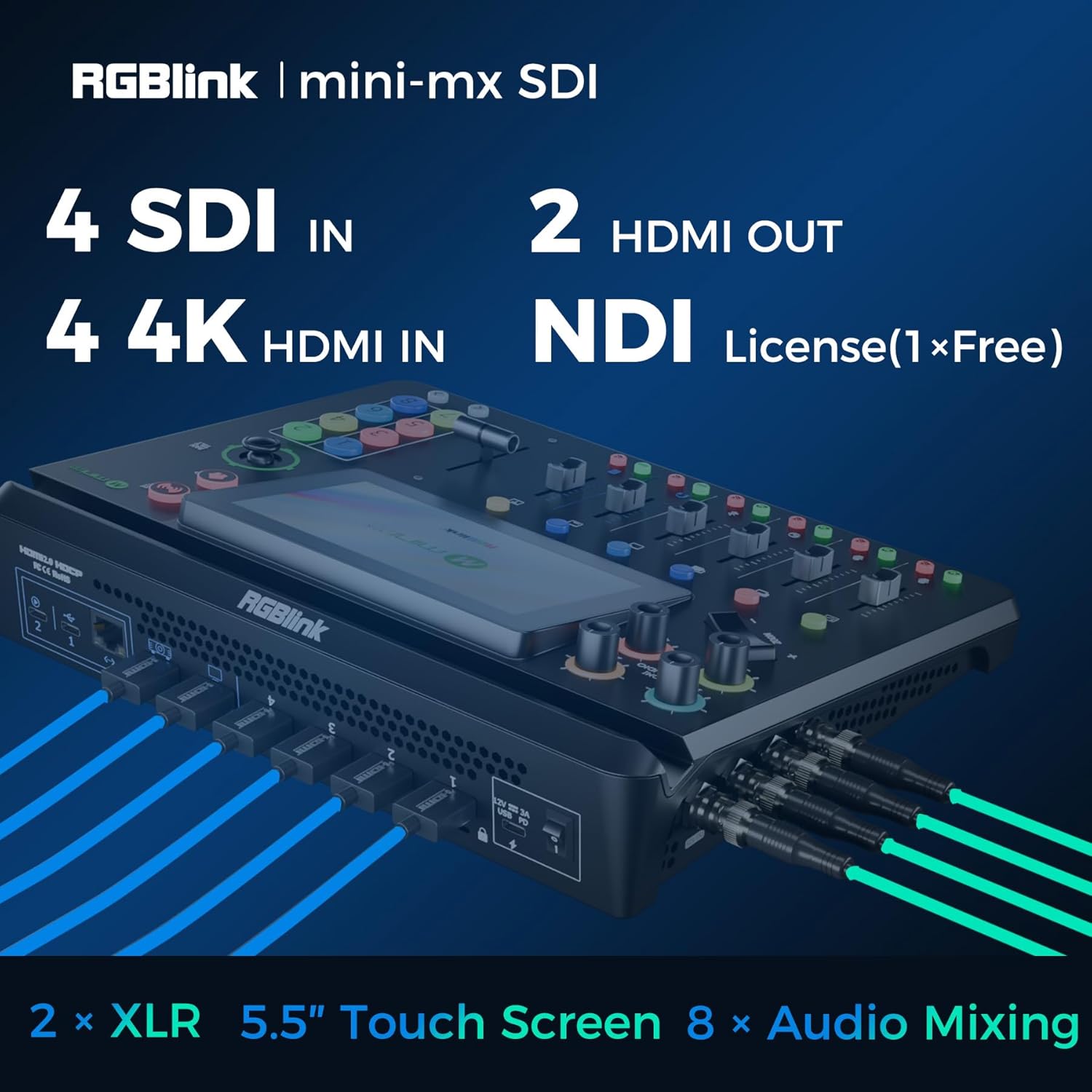

Rich 4K Inputs & Stream-Ready Outputs : Equipped with 4x HDMI 2.0 and 4x 3G-SDI inputs, mini-MX SDI connects to all your pro gear—from DSLRs to SDI camcorders. It outputs to 2x HDMI displays and includes USB 3.0 UVC for plug-and-play livestreaming to Zoom, OBS, and Teams. Functions as an All-in-One Pro Live Streaming Multi-Camera Video Mixer Switcher Recorder with NDI|HX2 and RTMP(S) built-in streaming.
Built-in PTZ Control for Seamless Multi Camera Livestreaming : Control up to 4 PTZ cameras directly from the device using VISCA or NDI protocol—no external controller required. Adjust pan, tilt, zoom, and focus via the front panel joystick or touchscreen. Save PTZ positions into your 16 scene presets for instant recall. Ideal as a Multiple Camera SDI and HDMI Live Stream Video Mixer Switcher / live switching console for events, education, and worship production setups.
Pro-Grade Audio Mixer with Bluetooth & Phantom Power :mini-MX SDI includes dual XLR/TRS combo jacks with 48V phantom power, Line-In, and Bluetooth audio input. Mix embedded HDMI/SDI audio with external mic and music sources using the built-in mixer. Features like audio follow video (AFV), audio delay adjustment, and one-touch mute ensure professional-grade sound for streaming, recording, and hybrid events.
Remote Control via WebApp & TAO Cloud: Operate your entire production remotely using a browser-based WebApp or TAO Cloud. Switch inputs, load scenes, trigger overlays, and control audio or PTZ—all from a laptop, tablet, or smartphone. Ideal for portable professional multi-camera streaming setups ，such as remote directors, mobile producers and hybrid workflows across locations.
