Product description

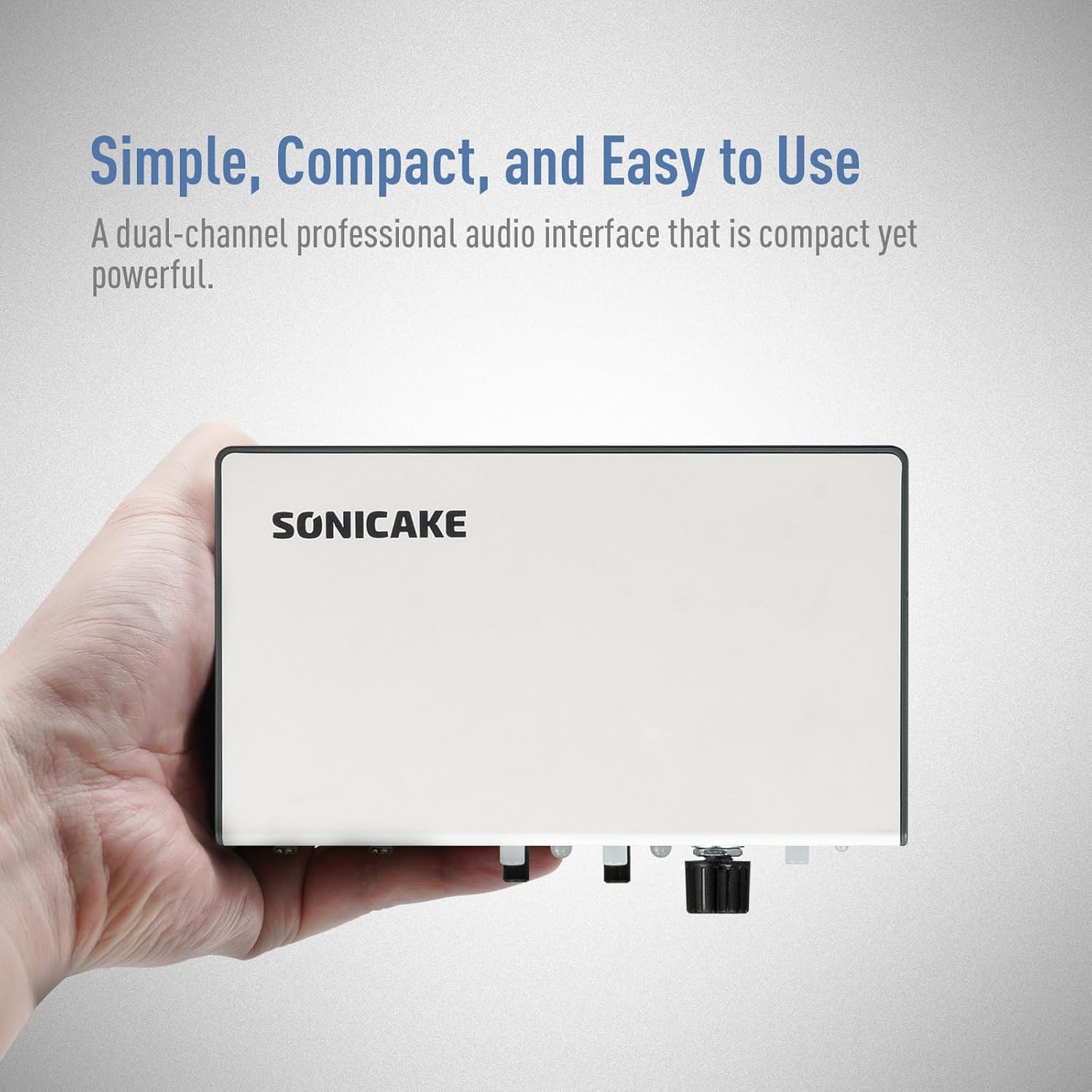

Sonic Cube II is a dual-channel professional audio interface featuring high-quality analog preamps for exceptional dynamic range and low distortion, meeting the highest demands for various instruments.
It includes powerful computer software with digital modeling guitar amps and DSP effects, adding versatility to your sound.
The convenient “ON AlR” function simplifies live streaming, while computer connectivity ensures optimal recording quality.
1.MIC1 XLR Combo, widely compatible with most microphone types. 2.LINE/INST 2 6.35mm TRS jack (balanced connection) for connecting instruments (TS unbalanced connection) or line-level input. 3.EFX/48V Effects/phantom power switch. Click to enable DSP effects; long press to enable 48V phantom power. The button light shows red when DSP is active, green for 48V, and yellow when both are on. 4.GAIN 1 Adjusts the gain of MIC 1 microphone signal. The LED on the right indicates signal level: green shows a minimum input level of -60dBFS (“signal present”), yellow at -6dBFS (signal nearing clipping), and red at 0dBFS (digital clipping). 5.GAIN 2 Adjusts the gain for LINE/INST 2 signal. The LED functions are the same as for GAIN 1. 6.RVB/HI-Z Reverb effect and LINE/INST 2 impedance switch. Click to enable reverb; long press to change impedance for instrument or line-level signals. When in instrument mode, the HI-Z light is green. Reverb is red, and both enabled is yellow. 7.OUTPUT Controls output level for both rear panel and front headphone outputs. 8.ON AIR/MONITOR Online/monitor switch. When online (with OTG Loopback on), all outputs go through USB/OTG. When monitor is enabled, inputs can be monitored in real-time through headphones or balanced outputs. 9.PHONES Connect headphones with a 6.35mm TRS jack directly. For 3.5mm TRS (mini-jack), use a 6.35mm to 3.5mm adapter. Note: 4-pole TRRS headphones may not work properly. 10.USB LED Lights up when the device is connected to a USB power source, indicating it is properly connected and working. 11.USB 2.0 Port Type-C connector. Connects to a computer via the included USB cable. 12.AUTO OUTPUT Audio output selection switch. When off, headphones and OUTPUT will output simultaneously; when on, headphones mute OUTPUT when plugged in. 13.OTG OTG port. 14.BALANCED OUTPUT Two 6.35mm TRS balanced jacks. Compatible with TRS (balanced) and TS (unbalanced) plugs. Active powered monitor speakers with built-in amplifiers can connect directly. Passive speakers require an external stereo amplifier, in which case, connect the rear panel output to the amplifier input.
ASIO Driver
Free ASIO driver provides support for major host software.
Additional Support
USB Type-C interface, driver-free support for Windows and Mac OS.
Low Power Consumption
DC 5V interface reduces battery drain on mobile devices.
SPECIFICATIONS
Sampling Frequency 44.1kHz/48kHz Sampling Precision 16-bit/24-bit MIC 1 Combo balanced input (max input gain 50dB) LINE/INST 2 1/4″ (6.35mm) TRS jack (gain range -25dB to +25dB) Outputs 1/4″ (6.35mm) TRS balanced jacks x2 Headphone Output 1/4″ (6.35mm) headphone jack USB USB 2.0 Type-C connector Power Supply 5V DC Dimensions 95.8mm (D) x 143.5mm (W) x 43.5mm (H) Weight 320g
USB Audio Interface will be protected from any Hum or Interference. Also During Long-Distance Transmission, Record Singing or Guitar, Bass to the Recording Software Through the Recording Software, So that you can make your Favorite Music.
High-Performance Converters – Enable you to record and mix at up to 24bit/ 48kHz. Lower Noise and Achieves High-Quality Audio Reproduction, meeting the key functions required by contemporary music and producers.
Reliable Power – The Stage Audio Mixer is equipped with +48V Phantom Power. With ultra-low noise design, suitable for beginners and studio professional applications
Highly Compatible – Compatible with Almost all Recording Software for Mac, Windows, It can Perfet Match ProTools//Reaper/Ableton and Other DAW Recording Software.
It includes powerful computer software with built-in digital modeling for guitar amplifiers and DSP effects, adding versatility and fun. The convenient “ON AIR” feature streamlines live streaming, while connecting to a computer enables you to achieve optimal recording quality.
